Truck Bodies

We offer a wide variety of truck bodies, in most every size, from manufacturers like S&H, Duraclass, Ox Body, Godwin, and many others!

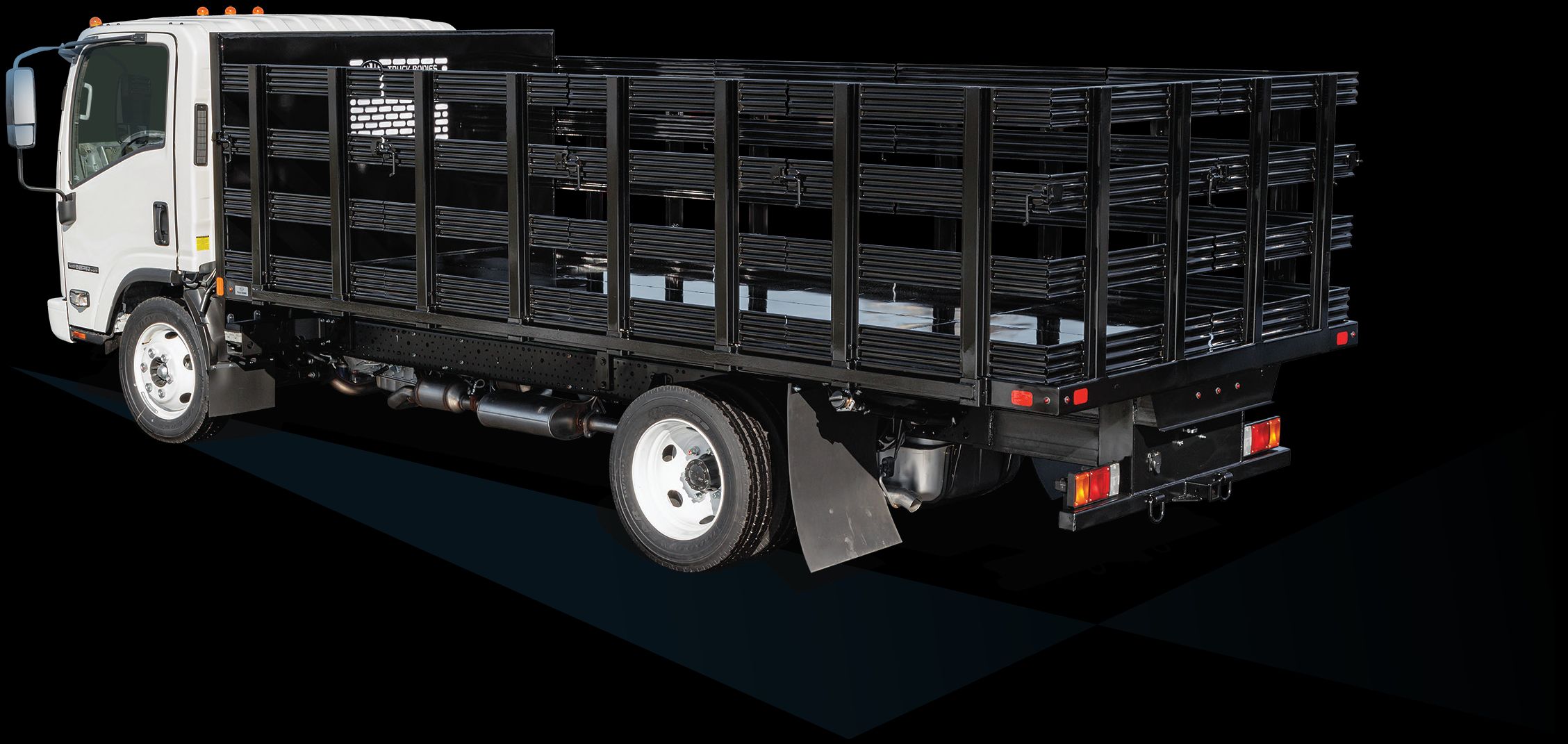

S&H Standard Platform/Stake Bodies

Standard Features include:
- 42″ or 48″ high weld-on bulkhead with screened window. Also available in 54″ or 60″ high.
- 3⁄4″ LED marker and clearance light kit meets(FMVSS108) (Includes wiring harness).
- Primed and painted black, (other colors available).
- Structural channel long sills 8’6″ – 14’6″ • 6″ x 8.2 lb. channel | 16’6″ – 20’6″ • 7″ x 9.8 lb. channel | 22’6″ – 26’6″ • 8″ x 11.5 lb channel.
- 3″ Structural cross members 12″ o.c.
- 4″ Formed 3/16″ channel rear rail with inset stake pockets.
- 10 ga. smooth steel or shiplapped KDAT pine floor.
- 10 ga. formed side rails.
- 3⁄16″ heavy-duty exterior stake pockets with 3⁄8″ x 2″ rub rail on sides.
- Standard overall width 96″ (optional 102″ wide).

Click for an S&H Truck Body spec sheet

For more info, call 703-339-4541, or Email RWard@EquipmentWorksInc.com.

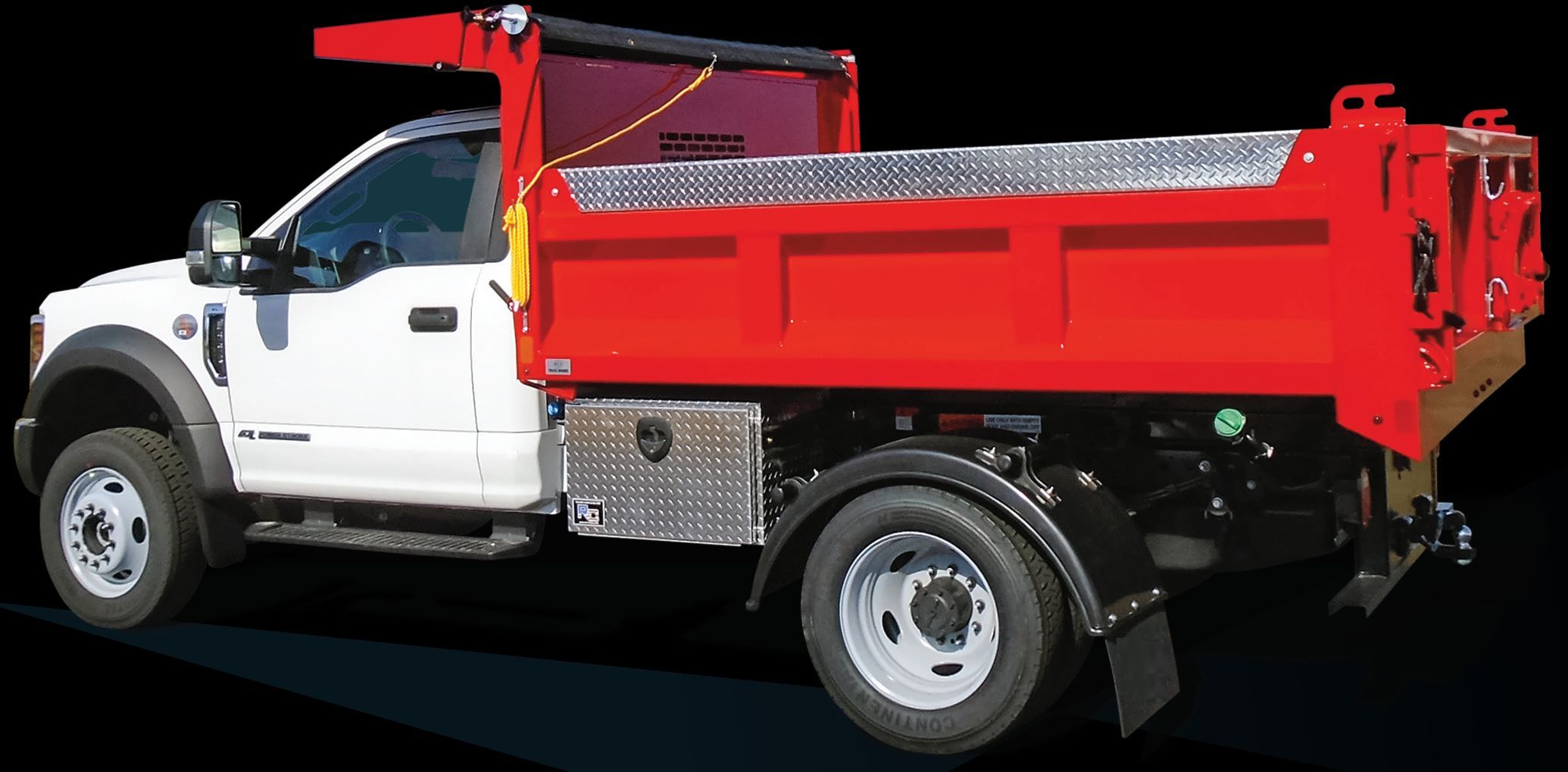

S&H Dump Truck Bodies

Standard Features include:
- Constructed with 10 ga. steel.
- Fully boxed frame with two 12 ga. vertical posts.
- Standard height — 6″ higher than sides.
- Fully double-acting with bottom release lever at driver’s side, upper release is quick release screw pin style.
- Standard with spreader chains and banjo eye chain holders on rear post.

Body Standard Features:
- 6″ x 8.2 lb. structural channel long sills.
- 3″ structural channel cross members 12 o.c.
- 10 ga. steel floor formed with inner side wall.
- 12 ga. outer wall sides with box formed top and V-formed outside wall with two vertical braces.
- 18″ cab shield, with brackets for side boards (various heights available).
- Rear posts 6″ higher than sides with brackets for side boards.
- LED dump body light kit includes marker and clearance lights and 1 stop/turn/tail-light per rear corner post with wiring harness. Meets (FMVSS108).
- Available with 12″, 16″, 20″ or 24″ sides.
- Standard width 96″ outside.
- Inside width 863⁄4″.
- Primed and painted black (other colors available).

Click for an S&H Truck Body spec sheet

For more info, call 703-339-4541, or Email RWard@EquipmentWorksInc.com.

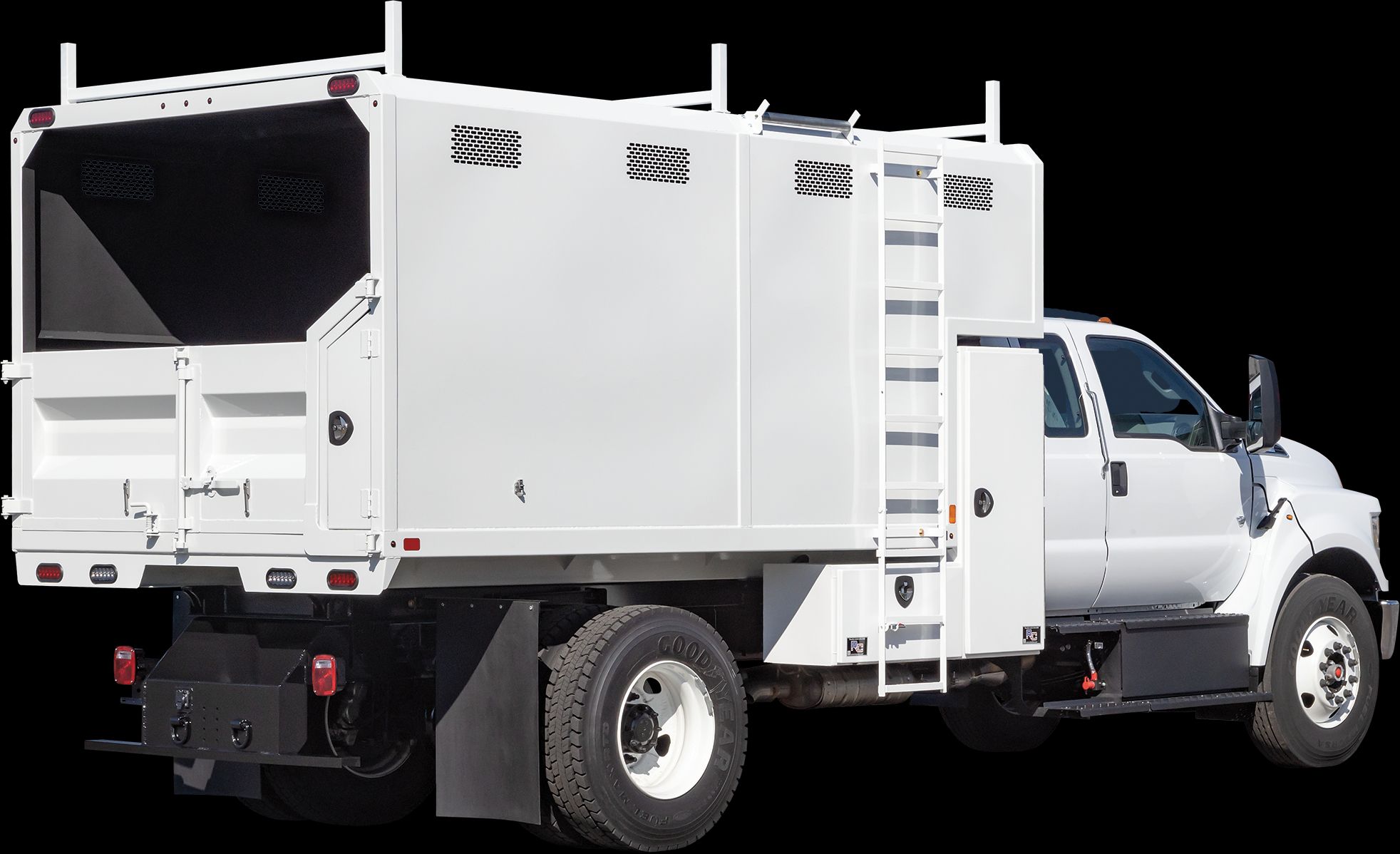

S&H Chipper Bodies

Standard Features:
- Primed and painted black, (other colors available).
- Standard size is 30″ high, 96″ wide.
- 89 1⁄4″ inside width.
- 3 x 1 tube 1⁄8″w on bottom of chipper top with 3⁄4″ pipes welded on, weld 3⁄4″ pipes on inside of top rail on body. Then latch in place with 3⁄4″ pins.
- 3⁄4 — #9 mesh screening in every panel.
- 14 ga. sheet metal.

Options:
- 26″ overhang to be used with backpack toolbox.
- Top ladder rack with access steps and grab handle.
- Custom width and length.
- Inside rubberized coating.

Click for an S&H Truck Body spec sheet

For more info, call 703-339-4541, or Email RWard@EquipmentWorksInc.com.
