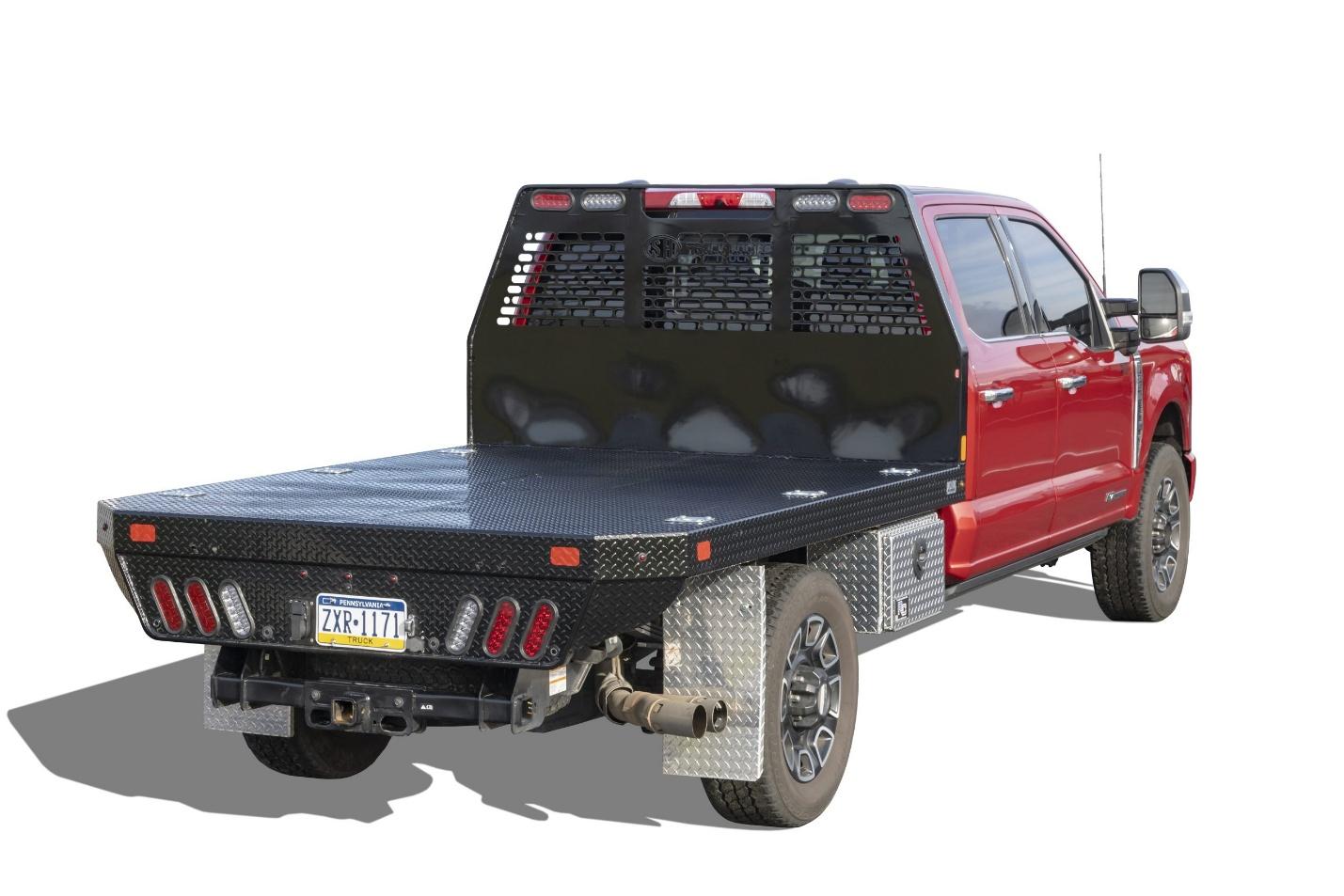

SH CPB1000
Weight by Body Length
| Length | 12" Sides | 16" Sides | 20" Sides |
|---|---|---|---|
| 9'3" | 765/2–3 | 1825/3–4 | 1922/4–5 |
| 10'6" | 1947/2–3 | 2006/3–4 | 2119/4–5 |
| 11'3" | 2005/3–4 | 2076/4–5 | 2193/5–6 |
| 12'6" | 2187/3–4 | 2235/4–5 | 2361/5–6 |
Standard Features
- 5″ formed channel long sills
- 3″ formed 12 ga. cross members, 12″ o.c.
- 12 ga. diamond plate floor
- Exterior stake pockets with tie rail
- Fuel fill cutout on driver’s side
- 37″ or 39″ tapered bulkhead
- LED light kit (rear apron + bulkhead, FMVSS108)
- Painted black
- Chassis-specific mounting kits (Ford, RAM, GMC 2019+)
Cab Chassis Specs
- 4″ structural channel long sills
- No fuel cutout unless specified
- No mounting kit
Let’s build something that works for your business — contact us today.

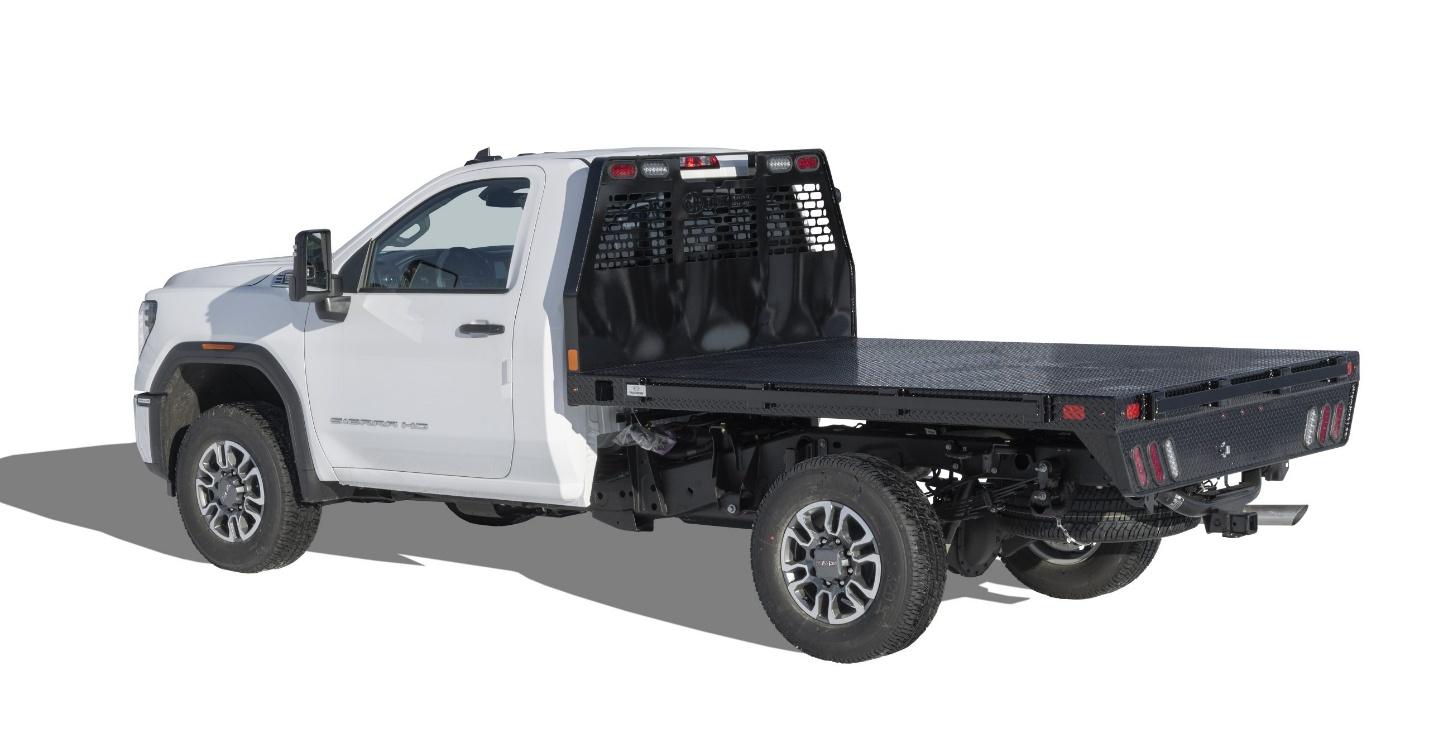

SH CPB2000
Weight by Body Length
| Body Length | 80" Wide Single Wheel | 92" Wide Dual Wheel |
|---|---|---|
| 7'6" | 890 | 959 |
| 8'10" | 982 | 1059 |
| 9'6" | 1025 | 1106 |
| 12' | N/A | 1276 |
Standard Features
- 5″ formed channel long sills
- 3″ formed 12 ga. cross members
- 12 ga. diamond plate floor
- Recessed D-rings on both sides
- Tapered rear corners (gooseneck clearance)
- LED light kit (FMVSS108)
- Chassis-specific mounting kits
