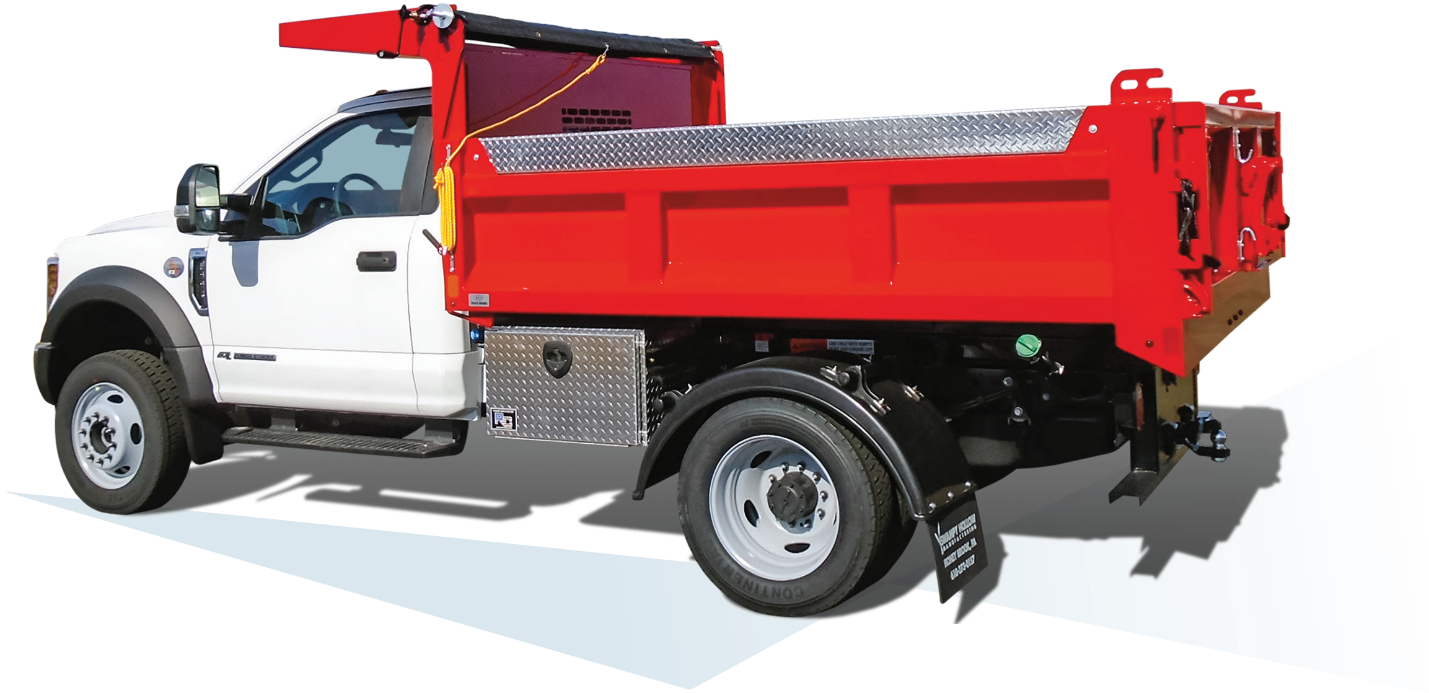

SH Mason/Contractor Dump Bodies
Standard Length & Approximate Body Weight / Cubic Yards Capacity
| Length | 12" Sides | 16" Sides | 20" Sides |
|---|---|---|---|
| 9'3" | 765/2–3 | 1825/3–4 | 1922/4–5 |
| 10'6" | 1947/2–3 | 2006/3–4 | 2119/4–5 |
| 11'3" | 2005/3–4 | 2076/4–5 | 2193/5–6 |
| 12'6" | 2187/3–4 | 2235/4–5 | 2361/5–6 |
Standard Features
- 6″ x 8.2 lb. structural channel long sills
- 3″ structural channel cross members 12″ o.c.
- 10 ga. steel floor formed with inner side wall
- 12 ga. outer wall sides with box-formed top and V-formed exterior
- 18″ cab shield with brackets for side boards
- Rear posts 6″ higher than sides
- LED light kit (FMVSS108 compliant)
Options
- 7″ x 14″ tailgate metering chute
- 36″ or 48″ cab shield
- Custom sizes
- Electric or PTO dump hoists
- Manual or 12V load tarps
- Telescopic electric hoist with compact dog box

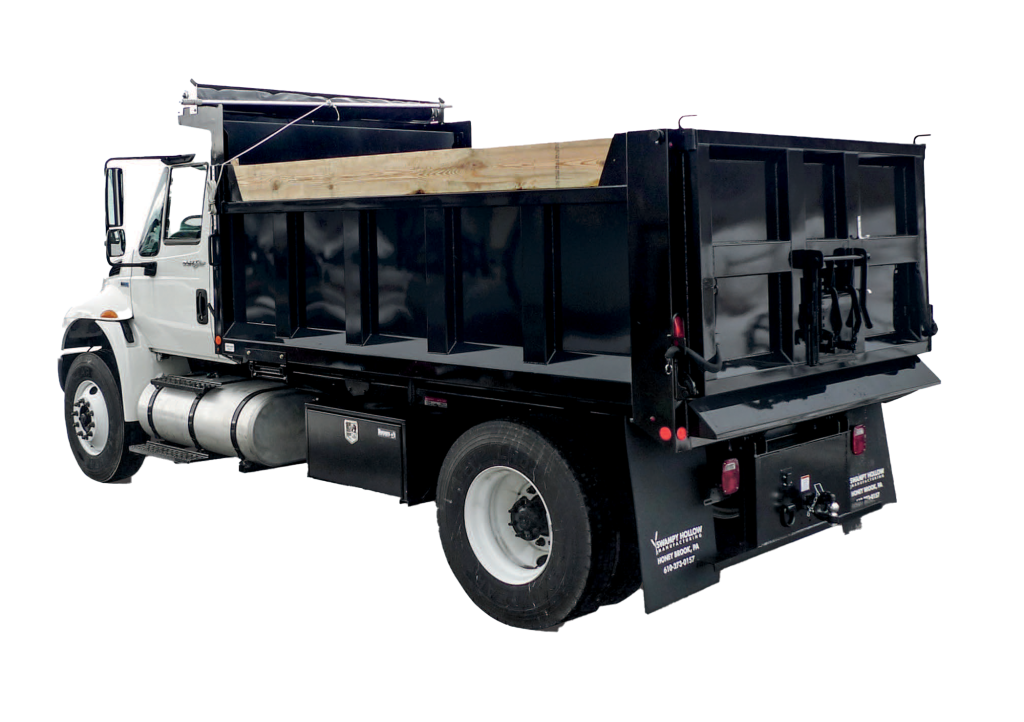

SH Super Duty Dump Bodies
Standard Length & Approximate Body Weight / Cubic Yards Capacity
| Length | 24" Sides | 30" Sides | 36" Sides |
|---|---|---|---|
| 10' | 2805 / 5.33 | 2958 / 6.67 | 3082 / 8.00 |
| 11' | 2986 / 5.87 | 3152 / 7.34 | 3318 / 8.81 |
| 12' | 3179 / 6.40 | 3350 / 8.00 | 3528 / 9.61 |
Standard Features
- 7″ x 9.8 lb. structural channel long sills
- 4″ cross members 12″ o.c.
- 7 ga. steel floor and side walls
- Boxed tubing top rail and vertical braces
- 18″ cab shield
- LED light kit
- Width: 96″ outside, 86½″ inside
- Primed and painted black
Options
- Tailgate metering chute (12⅜″ x 13½″)
- 36″ or 48″ cab shield
- Spreader apron
- Load tarps, dump hoists, custom sizes
Let’s build something that works for your business — contact us today.

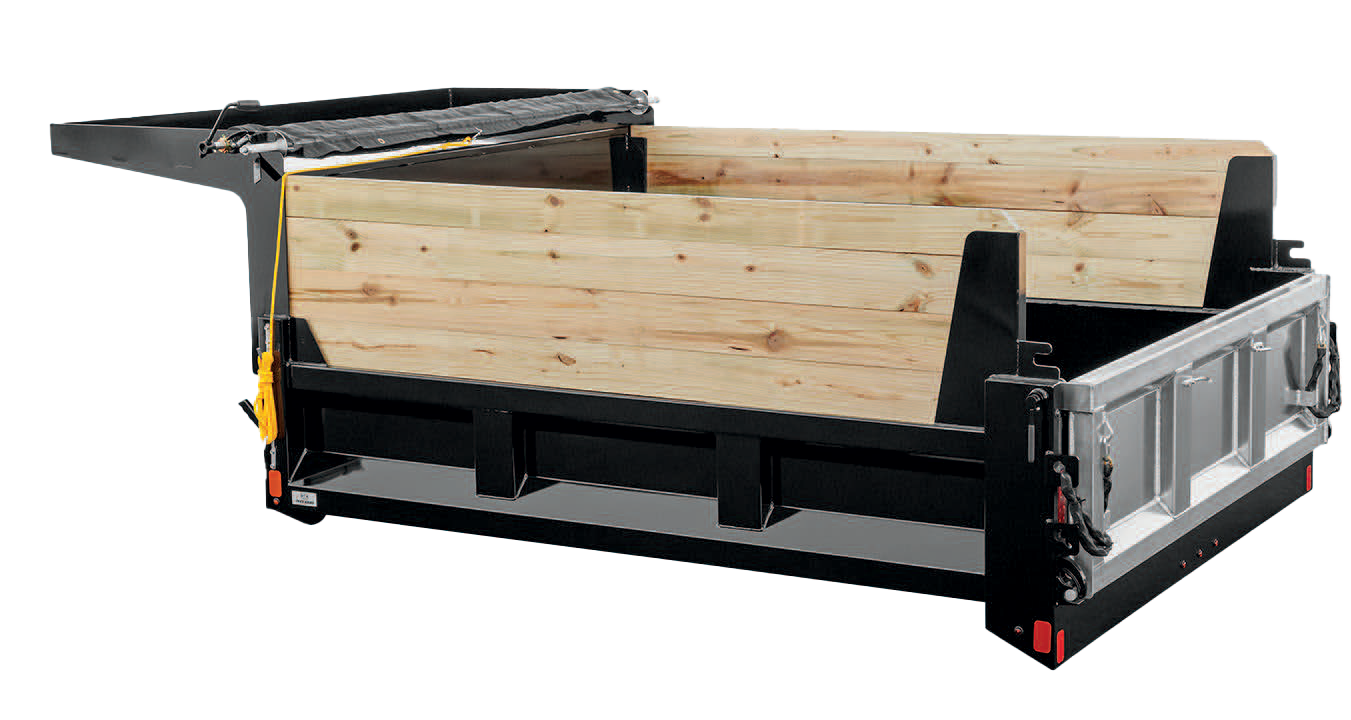

SH Appalachian Dump Bodies
Standard Length & Approximate Body Weight / Cubic Yards Capacity
| Length | 12" Sides | 16" Sides | 20" Sides |
|---|---|---|---|
| 9'3" | 1954 | 1999 | 2099 |
| 11'3" | 2207 | 2289 | 2411 |
Standard Features
- 6″ x 8.2 lb. structural channel long sills
- 3″ cross members 12″ o.c.
- 7 ga. steel floor
- 12 ga. outer walls, V-formed with box top
- 36″ cab shield
- Rear posts 6″ higher with tall board pockets
- LED dump body light kit (FMVSS108 compliant)
- Width: 96″ outside, 86¾″ inside
- Painted black (other colors available)

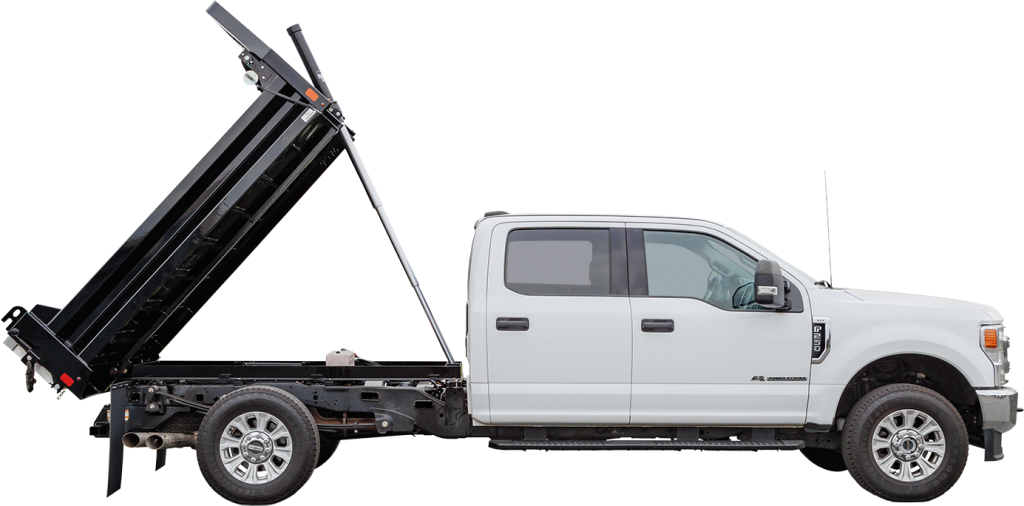

Pickup Dump Bodies
Standard Length and Approximate Body Weight/Cubic Yards capacity*
| Length | Width | Side Height | Weight | Capacity | Volume |
|---|---|---|---|---|---|
| 8'8" | SRW | 12" | 1610 | 1.3 tons | 1.9 cu. yd |
| 8'8" | DRW | 12" | 1710 | 2.5 tons | 2.3 cu. yd |
| 8'8" | SRW | 16" | 1630 | 1.3 tons | 2.5 cu. yd |
| 8'8" | DRW | 16" | 1740 | 2.5 tons | 3.1 cu. yd |
Standard Features
- 41″ bulkhead, LED light kit
- 5′ x 6.7 lb structural channel long sills
- 3″ formed 12 ga. cross members 12″ o.c.
- 12 ga. steel floor and walls
- 6″ higher front/rear posts with sideboard brackets
- Width: 81″/96″ outside (SRW/DRW), 71¾″/86¾″ inside
- Painted black with primer and urethane topcoat
Hoist & Subframe Specs
- 100″ angle subframe for 56″ CA chassis
- 78″ stroke telescopic hoist, 47° dump angle
- 5-ton hoist, 12V single acting power unit
- Fits most 56″ CA chassis with minor adjustments
Options
- Fold-down sides
- No tarp kit
- Tapered bulkhead
