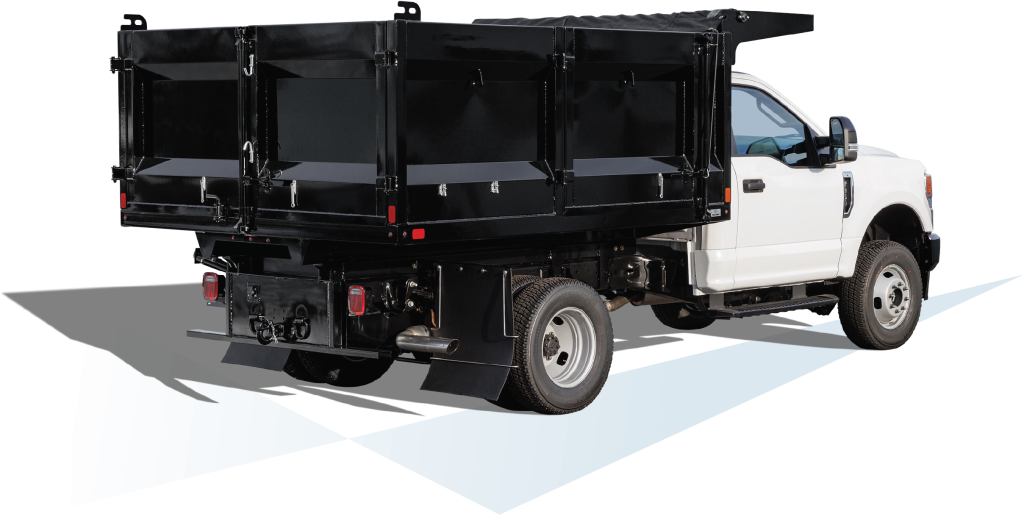

Landscape/Trash Bodies

Standard Outside Length and Approximate Weight in Pounds*
Length Width
9'6" 2015
11'6" 2295
12'6" 2435
14'6" 2737
16'6" 3025

Standard Features

  • ¾″ LED marker and clearance light kit (FMVSS108 compliant)
  • Primed and painted black (other colors available)
  • Standard width: 95½″ outside, 89½″ inside
  • 7″ x 9.8 lb structural channel long sills
  • 3″ 10 ga. formed cross-members on 12″ centers
  • 4″ channel rear rail
  • 10 ga. smooth steel floor with formed side rails
  • 12 ga. formed steel door with box tubing frame
  • 42″ or 48″ high weld-on bulkhead and sides
  • 10 ga. formed steel sides with box tubing top rail
  • Barn door style tailgates with dual cam latch
  • 50″ curbside door with dual cam latch

Options

  • Full rear 10′ drop light apron with full lighting and harness
  • Cab shield (18″, 36″, 48″)
  • Dump-through 18″ tailgate + top barn doors
  • Rope/tarp hooks on both sides
  • Manual or 12V load tarps
  • Super Duty model (7 ga. floor & sides, 3″ structural cross-members)
  • 30″ high rear barn doors (for optional chipper top)
  • Telescopic electric hoist with compact dog box
  • Custom sizes and removable chipper top
