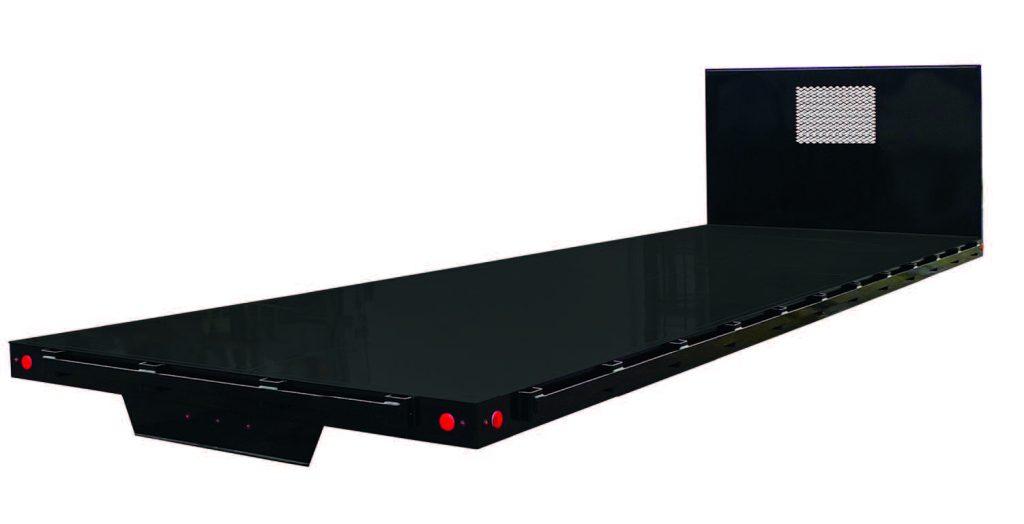

SH Standard Platform/Stake Bodies
Standard Lengths & Approximate Weight
| Length | Steel Floor Weight | Wood Floor Weight |
|---|---|---|
| 8'6" | 1161 | 1116 |
| 9'6" | 1266 | 1212 |
| 10'6" | 1370 | 1307 |
| 12'6" | 1575 | 1496 |
| 14'6" | 1782 | 1687 |
| 16'6" | 2039 | 1927 |
| 18'6" | 2252 | 2124 |
| 20'6" | 2464 | 2319 |
| 22'6" | 2751 | 2590 |
| 24'6" | 2972 | 2794 |
| 26'6" | 3192 | 2998 |
Standard Features
- Weld-on bulkhead (42″ or 48″, optional 54″ or 60″) with screened window
- ¾″ LED lighting (FMVSS108)
- Primed and painted black (other colors available)
- Structural channel long sills (varies by length: 6″–8″ channels)
- 3″ structural cross members, 12″ o.c.
- 4″ rear rail with inset stake pockets
- 10 ga. steel or shiplap KDAT pine floor
- 10 ga. formed side rails
- Heavy-duty stake pockets with rub rail
- Width: 96″ standard (optional 102″)
Options
- Floor upgrades: shiplap pine, apitong, tread plate, anti-slip
- Drop light apron
- Cab shields
- Custom sizes and triple window
- Same stake rack options as standard

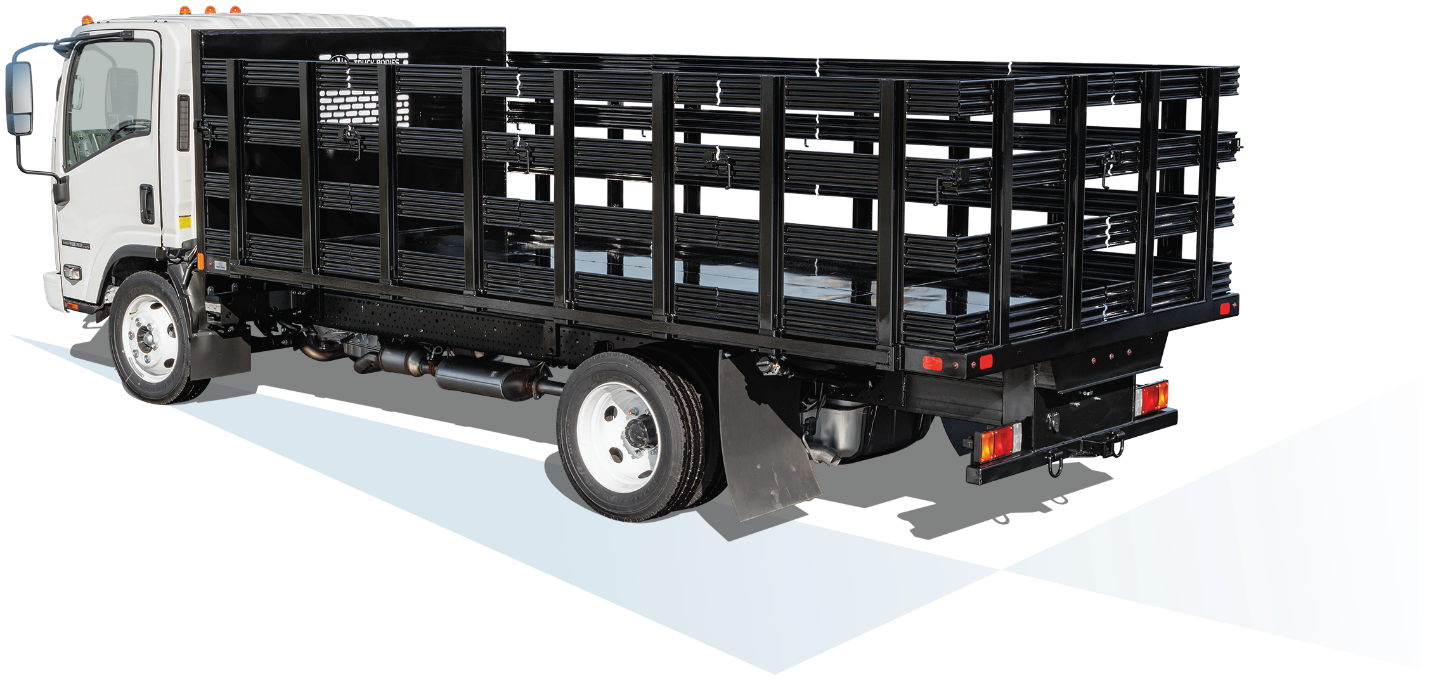

Stake Racks
- 42″ high 4 slat racks
- Constructed with 11 ga.reinforced hat stakes and 16 ga. roll formed slats
- Spring-loaded latch system on stakes assures secure attachment to body
- Optional rear swing out racks with bolt-on rear post
- Rack weight per 4′ section 4 slat — 42″ high, 49 lbs.
See something you like?
Contact us to schedule a viewing or request more details.
SH Super Duty Platform/Stake Bodies
Standard Length & Approximate Body Weight / Cubic Yards Capacity
| Length | Weight with Steel Floor | Weight with Wood Floor |
|---|---|---|
| 12'6" | 2262 | 1971 |
| 14'6" | 2556 | 2210 |
| 16'6" | 2844 | 2447 |
| 18'6" | 3134 | 2684 |
| 20'6" | 3510 | 2994 |
| 22'6" | 3797 | 3241 |
| 24'6" | 4095 | 3484 |
| 26'6" | 4395 | 3733 |
Super Duty Features
- Weld-on bulkhead (48″ standard; 54″, 60″ optional)
- FMVSS108-compliant LED lighting
- Black primer/urethane finish
- Long sills: 7″ or 8″ channel based on length
- 4″ cross members 12″ o.c.
- 6″ rear/side structural rails
- 7 ga. smooth steel floor
- Heavy-duty stake pockets with 3″ rub rail
Options
- 7″ x 14″ tailgate metering chute
- 36″ or 48″ cab shield
- Custom sizes
- Electric or PTO dump hoists
- Manual or 12V load tarps
- Telescopic electric hoist with compact dog box
Stake Racks
- 42″ high 4 slat racks
- Constructed with 11 ga. reinforced hat stakes and 16 ga. roll formed slats
- Spring-loaded latch system on stakes assures secure attachment to body
- Optional rear swing out racks with bolt-on rear post
- Rack weight per 4′ section 4 slat — 42″ high, 49 lbs.
